Test 3

Scenarios to be compared: EMME 4.3.7 Initialization VS Partial EMME 4.3.7 in OpenPaths

Scatterplot Comparison of AM Peak for WALK PRM modes assignment

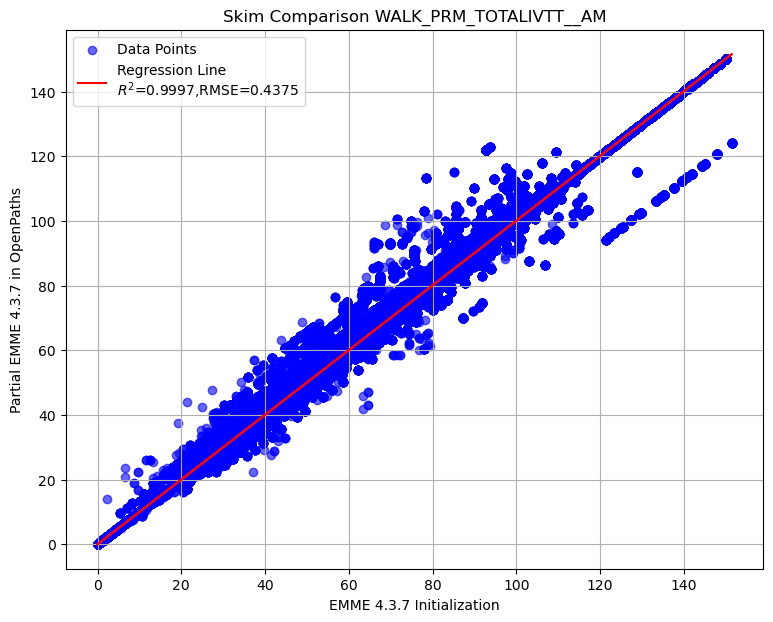

Scatterplot comparison of AM Peak total actual in-vehicle travel time by walk premium

Intercept: 0.0028
Slope: 1.0007
R² Score: 0.9997
RMSE: 0.4375

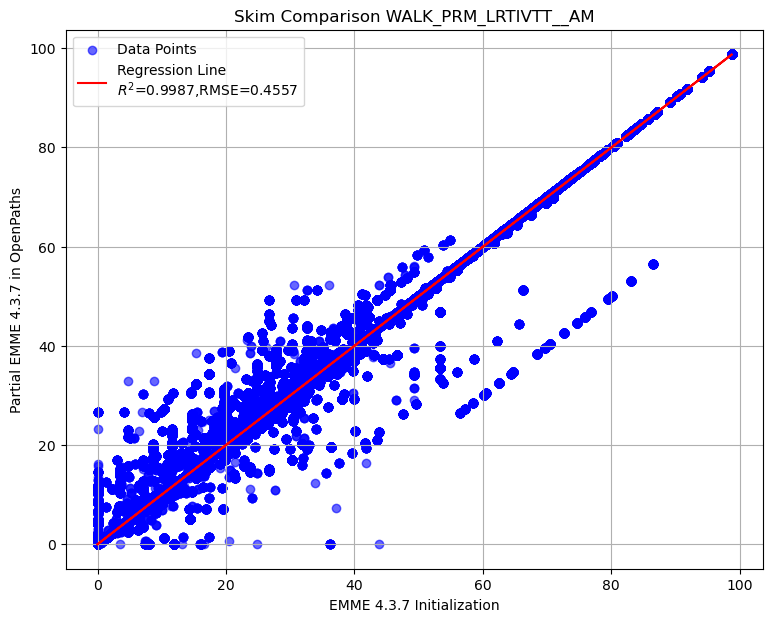

Scatterplot comparison of AM Peak actual in-vehicle travel time on LRT mode by walk premium

Intercept: 0.0077
Slope: 0.9992
R² Score: 0.9987
RMSE: 0.4557

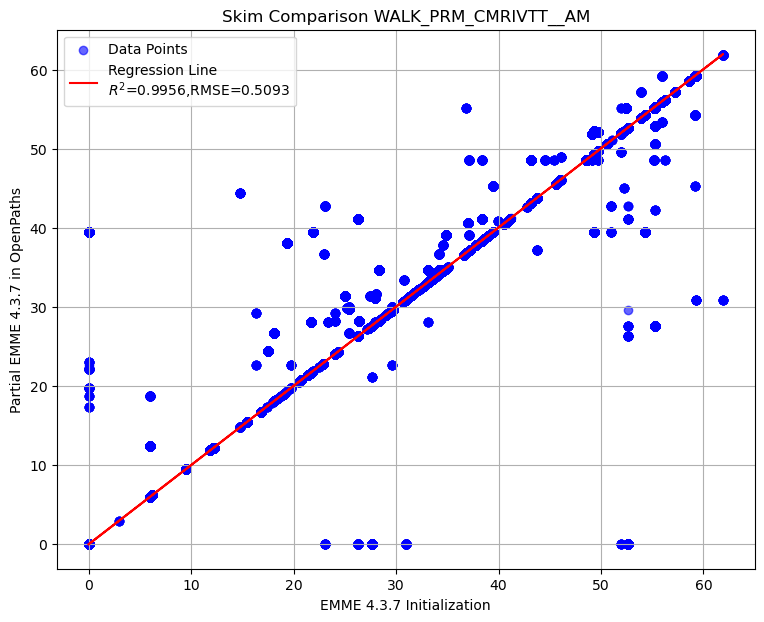

Scatterplot comparison of AM Peak actual in-vehicle travel time on commuter rail mode by walk premium

Intercept: 0.0049
Slope: 1.0017
R² Score: 0.9956
RMSE: 0.5093

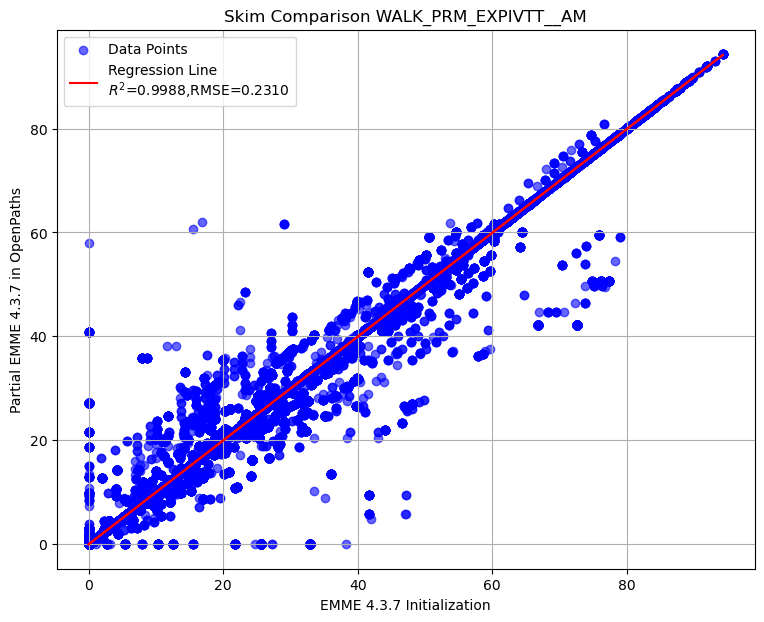

Scatterplot comparison of AM Peak actual in-vehicle travel time on express bus mode by walk premium

Intercept: 0.0012
Slope: 0.9986
R² Score: 0.9988
RMSE: 0.2310

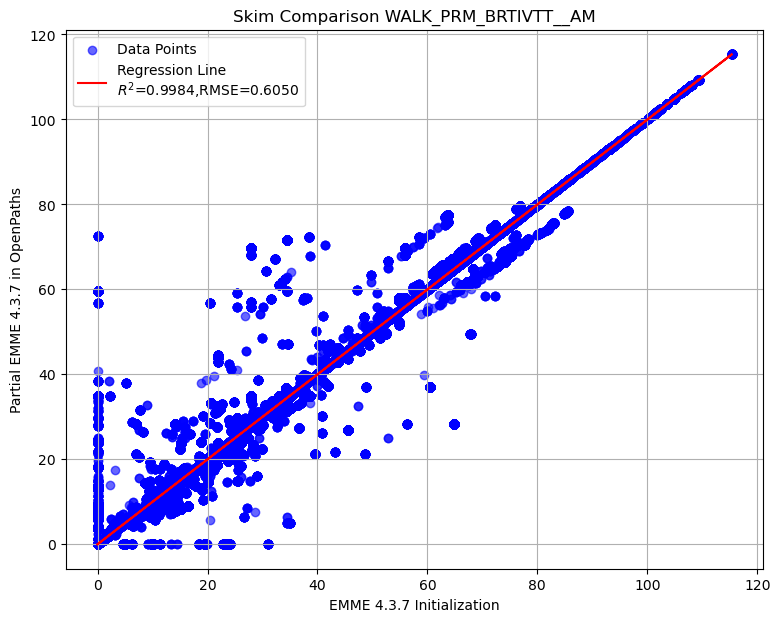

Scatterplot comparison of AM Peak actual in-vehicle travel time on BRT mode by walk premium

Intercept: 0.0035
Slope: 0.9996
R² Score: 0.9984
RMSE: 0.6050

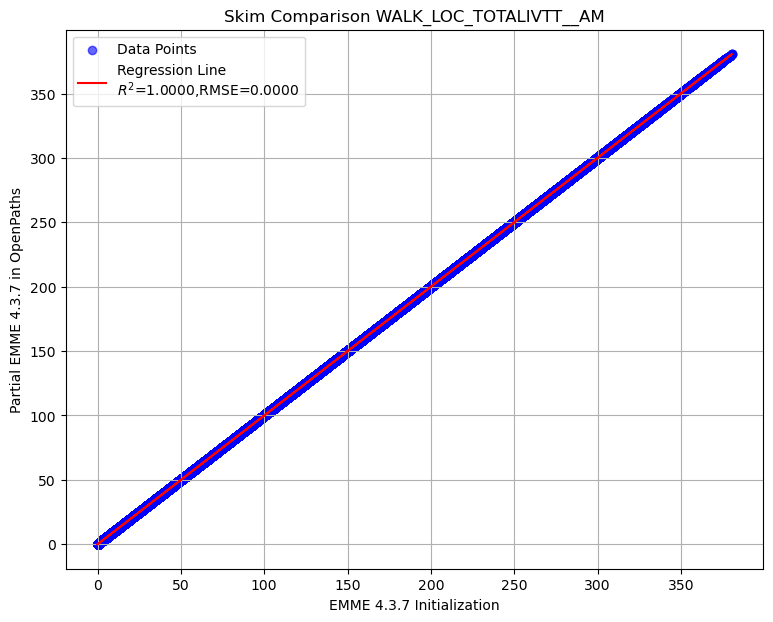

Intercept: -0.0000
Slope: 1.0000
R² Score: 1.0000
RMSE: 0.0000

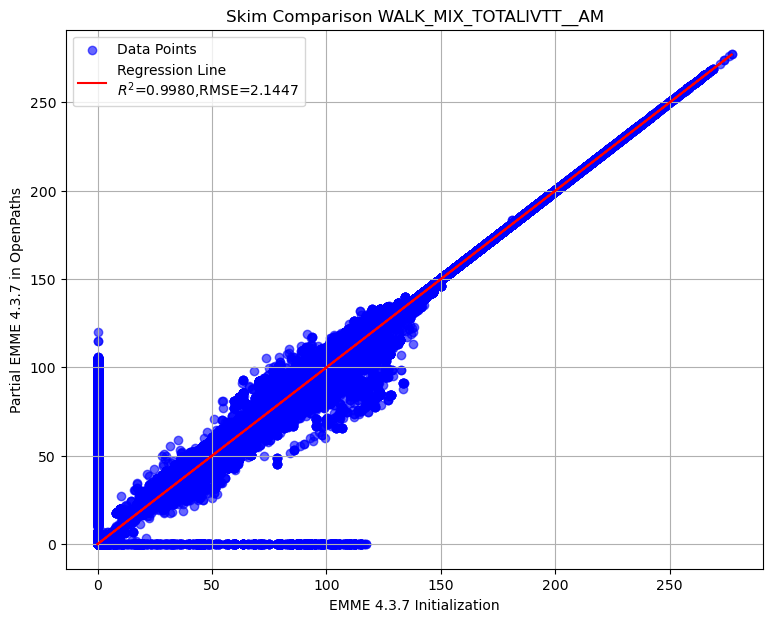

Intercept: 0.0976
Slope: 0.9989
R² Score: 0.9980
RMSE: 2.1447

Summary of transit AM skim comparison (EMME OpenPath - EMME 4.3.7)

To display the top 5 rows of skim comparison (sort by WALK_PRM_TOTALIVTT__AM)

Origin Destination WALK_PRM_TOTALIVTT__AM WALK_PRM_LRTIVTT__AM WALK_PRM_CMRIVTT__AM WALK_PRM_EXPIVTT__AM WALK_PRM_BRTIVTT__AM WALK_LOC_TOTALIVTT__AM WALK_MIX_TOTALIVTT__AM
680 231 35 15.13 -52.62 0 72.49 0 0
680 225 35 15.13 -52.62 0 72.49 0 0
680 177 35 15.13 -52.62 0 72.49 0 0
680 208 35 15.13 -52.62 0 72.49 0 0
680 227 35 15.13 -52.62 0 72.49 0 0

Below is the summary of selected matrices difference in transit AM skim

  WALK_PRM_TOTALIVTT__AM WALK_PRM_LRTIVTT__AM WALK_PRM_CMRIVTT__AM WALK_PRM_EXPIVTT__AM WALK_PRM_BRTIVTT__AM WALK_LOC_TOTALIVTT__AM WALK_MIX_TOTALIVTT__AM
count 24,472,809.00 24,472,809.00 24,472,809.00 24,472,809.00 24,472,809.00 24,472,809.00 24,472,809.00
mean 0.01 0.00 0.01 -0.00 0.00 0.00 0.06
std 0.44 0.46 0.51 0.23 0.61 0.00 2.15
min -27.28 -43.85 -52.62 -41.41 -36.68 -0.00 -117.24
25% 0.00 0.00 0.00 0.00 0.00 0.00 0.00
50% 0.00 0.00 0.00 0.00 0.00 0.00 0.00
75% 0.00 0.00 0.00 0.00 0.00 0.00 0.00
max 35.00 28.27 39.47 57.95 72.49 0.00 119.97

Let’s check the records with difference in WALK_PRM_LRTIVTT__AM greater than 50

Origin Destination WALK_PRM_TOTALIVTT__AM WALK_PRM_LRTIVTT__AM WALK_PRM_CMRIVTT__AM WALK_PRM_EXPIVTT__AM WALK_PRM_BRTIVTT__AM WALK_LOC_TOTALIVTT__AM WALK_MIX_TOTALIVTT__AM
51 2395 17.55 26.69 -28.29 0 19.15 0 0
51 2476 17.26 26.69 -28.29 0 18.86 0 0
51 2776 16.79 26.69 -28.29 0 18.4 0 0
51 2856 17.02 26.69 -28.29 0 18.62 0 0
51 2878 17.02 26.69 -28.29 0 18.62 0 0
51 2890 17.02 26.69 -28.29 0 18.62 0 0
51 2897 17.02 26.69 -28.29 0 18.62 0 0
51 2903 17.02 26.69 -28.29 0 18.62 0 0
51 2972 17.02 26.69 -28.29 0 18.62 0 0
51 2990 17.02 26.69 -28.29 0 18.62 0 0
51 3045 17.02 26.69 -28.29 0 18.62 0 0
51 3049 17.02 26.69 -28.29 0 18.62 0 0
51 3144 17.02 26.69 -28.29 0 18.62 0 0
51 3180 17.02 26.69 -28.29 0 18.62 0 0
51 3247 17.02 26.69 -28.29 0 18.62 0 0
51 3345 17.02 26.69 -28.29 0 18.62 0 0
51 3360 17.02 26.69 -28.29 0 18.62 0 0
51 3416 17.02 26.69 -28.29 0 18.62 0 0
51 3465 17.02 26.69 -28.29 0 18.62 0 0
3763 2452 16.14 28.27 0 -4.02 -8.11 0 0

Let’s check the records with difference in WALK_PRM_LRTIVTT__AM less than -50

Origin Destination WALK_PRM_TOTALIVTT__AM WALK_PRM_LRTIVTT__AM WALK_PRM_CMRIVTT__AM WALK_PRM_EXPIVTT__AM WALK_PRM_BRTIVTT__AM WALK_LOC_TOTALIVTT__AM WALK_MIX_TOTALIVTT__AM
2599 1109 19.46 -43.85 0 57.95 5.36 0 0
